Description
10” X 18″ Metal Bandsaw RF-1018R
With its advanced features and sturdy construction, the RF-1018R ensures smooth operation and high-quality results when cutting various materials. Ideal for professionals and hobbyists alike seeking superior performance in their cutting operations.
![RF-1018R (2)](https://www.sawing.co.id/wp-content/uploads/2024/03/RF-1018R-2.jpg)

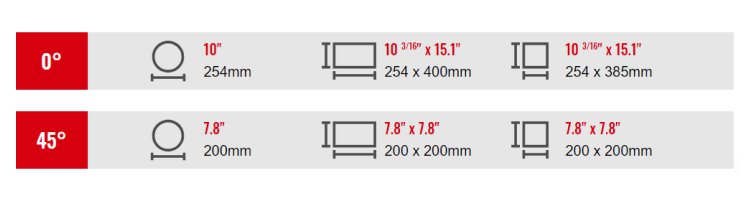

Cutting Capacity
Choose the right bandsaw for your needs based on its cutting capacity.
![Cutting Capacity RF-1018R](https://www.sawing.co.id/wp-content/uploads/2024/03/Cutting-Capacity-RF-1018R.jpg)
Features
RF-1018R
Work Table Swivel for Angle Cutting
Saves Machine Space.
T-Slot Design Swivel Base for Stability.
Cast Blade Wheels for Strength &
Durability.
Heavy Duty 4 Step Pulley Gearbox.
Hydraulic Brake Down Feed Dial on
Control Panel.
Large Setting Scale for Counter Blade
Position Setting.
Carbide Guide with Bearing fr Stability
and Durability.
Tru-lock Vise Provides Firm Clamping.
Adjustable Blade Guide Arm Increases
Work Piece Precision & Saw Blade Life.
Clamping Vise for 0º – 45º Angle
Cutting.
Coolant System for Wet Cutting.
Wide Chip Tray with Filter Net for Easy
Chip Handling.
RF-1018RV
Heavy Duty Variable Speed.
RF-1018RVAA
Semi Auto Bow.
Hydraulic Vise.
Table Specifications
Item | RF-1018R | RF-1018RV | RF-1018RVAA |
---|---|---|---|
Main Motor HP | 2 (1.5kw)(3-phase) | 2 (1.5kw)(3-phase) | 2 (1.5kw)(3-phase) |
Speed MT/min | 60HZ / 30-60-88-115 | 60HZ / 30~110 | 60HZ / 30~110 |
Speed Ft/min | 60HZ /114-196-288-377 | 60HZ / 98~360 | 60HZ / 98~360 |
Saw Blade mm (WxTxL) | 27×0.9×3090 | 27×0.9×3090 | 27×0.9×3090 |
Saw Blade inch (WxTxL) | 1.06×0.045×121.66 | 1.06×0.045×121.66 | 1.06×0.045×121.66 |
Machine Dimensions mm (LxWxH) | 1800x820x1280 | 2075x820x1280 | 2075x820x1280 |
Machine Dimensions inch (LxWxH) | 70.9×32.3×50.4 | 81.7×32.3×50.4 | 81.7×32.3×50.4 |
Packing Dimensions mm (LxWxH) | 1730x830x1160 | 1730x830x1160 | 1730x830x1160 |
Packing Dimensions inch (LxWxH) | 68.1×32.7×45.7 | 68.1×32.7×45.7 | 68.1×32.7×45.7 |
Machine Weight NW/GW | 390/430 kgs 860/945 lbs | 390/430 kgs 860/945 lbs | 420/470 kgs 925/1035 lbs |
No.of Machines Packed in 20″ container | 7 sets / SKD 14 sets | 7 sets / SKD 14 sets | 7 sets / SKD 14 sets |
No.of Machines Packed in 40″ container | 14 sets/ SKD 28 sets | 14 sets/ SKD 28 sets | 14 sets/ SKD 28 sets |
