SHARK 331-1 NC 5.0 SPIDER
SHARK 331-1 NC 5.0 SPIDER, electrohydraulic automatic band sawing machine to cut metals mitering from 0° to +60°. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The automatic band sawing machine with a small footprint and excellent performance
Adaptive Saw Head Down Feed Rate
Self-regulation in real-time of head down feed rate according to the type of material or blade wear.

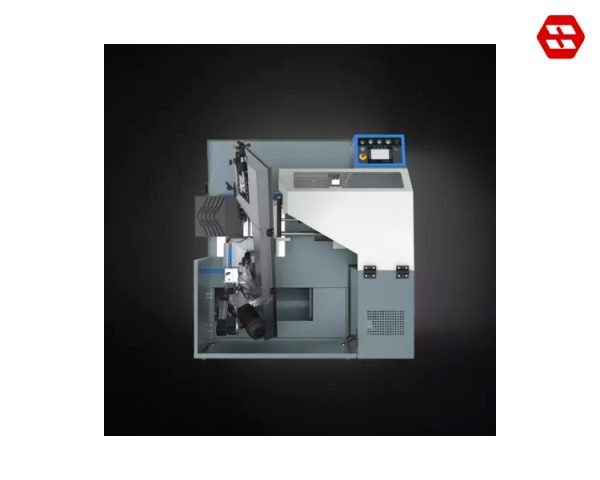

Super Compact Design and High Safety3.5 SM of Floor Space Only!
Operator's safety is guaranteed by the safety guarding surrounding the sawing machine according to the EC regulation with safety interlocks in accordance with the UNI 14119 regulation.
Industry 4.0 Ready-IOT
The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.
Two Cycle Modes
They allow to perform any kind of cut in the most efficient way.
Technical Data Bandsaw Machine Semi Automatic
SHARK 331-1 NC 5.0 SPIDER
MEP
CUTTING RANGE
 |  |  | |
| 0° | 300 mm | 260 mm | 330 x 260 mm |
| + 45° | 240 mm | 230 mm | 240 x 160 mm |
| + 60° | 160 mm | 150 mm | 150 x 150 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 335 mm |
| Minimum cutting length | 10 mm |
| Rest piece no longer feeded | 210 mm |
| Band size | 3650 x 27 x 0.9 mm |
| Blade motor power | 2.2 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 100 m/min |
