Description
TIGER 352 NC 5.0
TIGER 352 NC 5.0, electropneumatic automatic vertical circular sawing machine to cut metals mitering from -45° to +60°. In addition to the automatic cutting cycle, it can also operate in the semi-automatic mode.The super compact vertical circular sawing machine for the cut of metals that has always distinguished itself for its heavy-dutiness and accuracy
![TIGER 352 NC 5.0](https://www.sawing.co.id/wp-content/uploads/2024/03/TIGER-352-NC-5.0.jpg)
Saw Head Motion on Two Linear Guides
The motion of the saw head on double linear guide with preloaded ball screw slides drastically reduces vibrations during the cut.
![SAW HEAD MOTION ON TWO LINEAR GUIDES 2](https://www.sawing.co.id/wp-content/uploads/2024/03/SAW-HEAD-MOTION-ON-TWO-LINEAR-GUIDES-2.jpg)
Industry 4.0 Ready-IOT
The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.
![INDUSTRY 4.0 READY -IOT](https://www.sawing.co.id/wp-content/uploads/2024/03/INDUSTRY-4.0-READY-IOT-3.jpg)

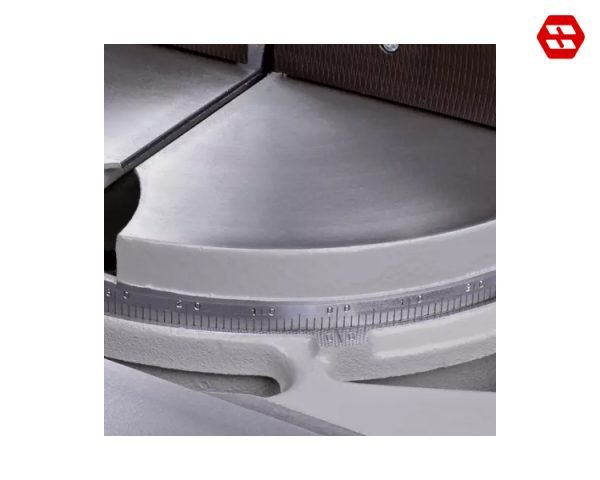

Easy Handling of The Turning Table 1
The turning table is assembled on a central pin and thrust bearing for an easy and precise rotation.
![EASY HANDLING OF THE TURNING TABLE 1](https://www.sawing.co.id/wp-content/uploads/2024/03/EASY-HANDLING-OF-THE-TURNING-TABLE-1.jpg)

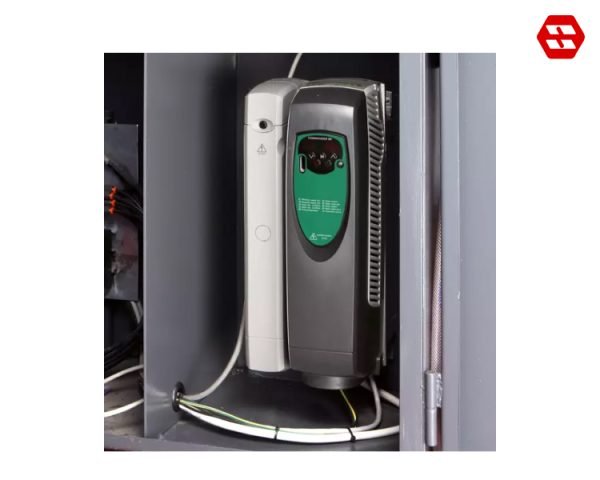

Vector Inverter For Infinite Variable Blade Rotation Speed
2.6 KW motor insulation class IP55 with vector inverter and mechanical gearbox for infinite variable blade speed from 12 to 120 rpm.
![VECTOR INVERTER FOR INFINITE VARIABLE BLADE ROTATION SPEED](https://www.sawing.co.id/wp-content/uploads/2024/03/VECTOR-INVERTER-FOR-INFINITE-VARIABLE-BLADE-ROTATION-SPEED.jpg)
Technical Data Semi Automatic Circular Saw Machine TIGER 352 NC 5.0 MEP
CUTTING RANGE
Ø | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | |
0° | 350 | 115 mm | 95 mm | 180 x 95 mm | 90 mm | 90 mm | ||
+ 45° | 350 | 110 mm | 95 mm | 125 x 95 mm | 64 mm | 64 mm | 64 x 90 mm | |
+ 60° | 350 | 90 mm | 90 mm | 90 x 90 mm | 45 mm | 45 mm | 45 x 90 mm | |
– 45° | 350 | 110 mm | 95 mm | 125 x 95 mm | 64 mm | 64 mm | 64 x 90 mm |
PERFORMANCE CHARACTERISTICS
Max. vice opening | 190 mm |
Disc size | HSS 350 x 32 x 3 mm |
Blade motor power | 4 Kw – Three-phase |
Blade rotation speed | 15 ÷ 150 rpm |
