Automatic Circular Saw Machine TIGER 372 CNC LR 4.0 MEP

Merupakan mesin gergaji bundar otomatis canggih yang dirancang untuk pemotongan logam secara presisi dan efisien. Dilengkapi dengan kontrol CNC dan mekanisme 4.0 LR yang inovatif, mesin ini memiliki pengoperasian otomatis dengan kemampuan pemotongan berkecepatan tinggi. Konstruksinya yang kuat dan mudah digunakan memastikan kinerja yang kualitas potongan yang unggul, menjadikannya pilihan yang ideal untuk industri. y

Description

TIGER 372 CNC LR 4.0

TIGER 372 CNC LR 4.0, electropneumatic automatic circular sawing machine to cut steels mitering from -45° to +60°. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode.The best automatic vertical circular sawing machine in terms of flexibility of use and cutting precision

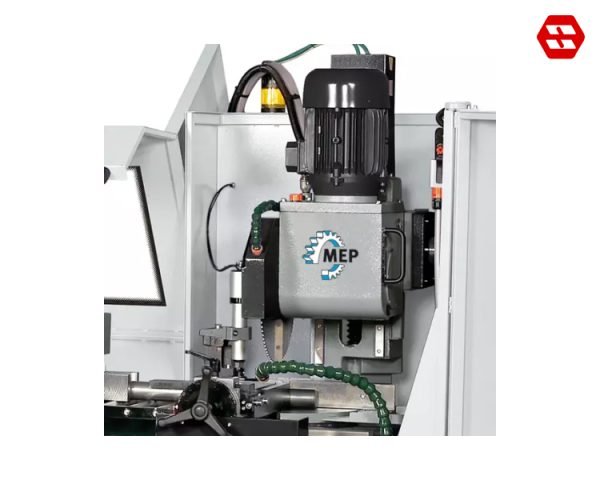

Cast-Iron Structure

Cast-iron structure to absorb vibrations and ensure greater cutting stability and longer blade ife.

Industry 4.0 Ready -IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

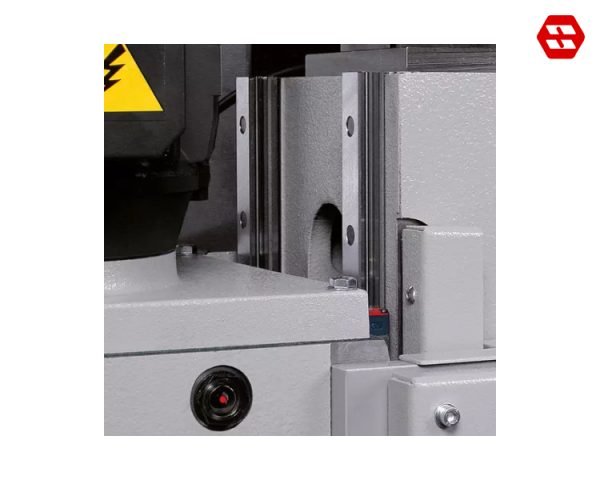

Motion of The Saw Head on Linear Guides

Motion of the saw head on linear guides with preloaded ball screw slides that ensures a mechanical vibration reduction during the cut.

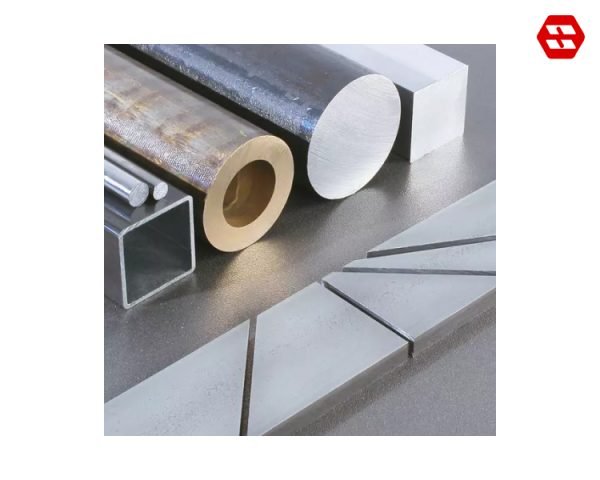

Adaptive Saw Head Down Feed Rate

Self-regulation in real-time of head down feed rate according to the type of material that grants a great surface finishing in any working condition, even in case of blade wear.

Technical Data Semi Automatic Circularsaw Machine TIGER 372 CNC LR 4.0 MEP

CUTTING RANGE

	Ø
0°	370	120 mm	100 mm	180 x 100 mm	120 mm	110 mm	180 x 100 mm
+ 45°	370	115 mm	100 mm	125 x 100 mm	70 mm	70 mm
+ 60°	370	115 mm	95 mm		50 mm	50 mm
– 45°	370	115 mm	100 mm	125 x 100 mm	70 mm	70 mm
