Description
Vertical Bandsaw LPS60-2
The compact BEHRINGER LPS60-2 block saw suits perfectly for contour- and allowance-optimized production of blanks from all plate dimensions and thicknesses. The plate saw has a robust design. It is flexible in use and can be perfectly adapted to your requirements.

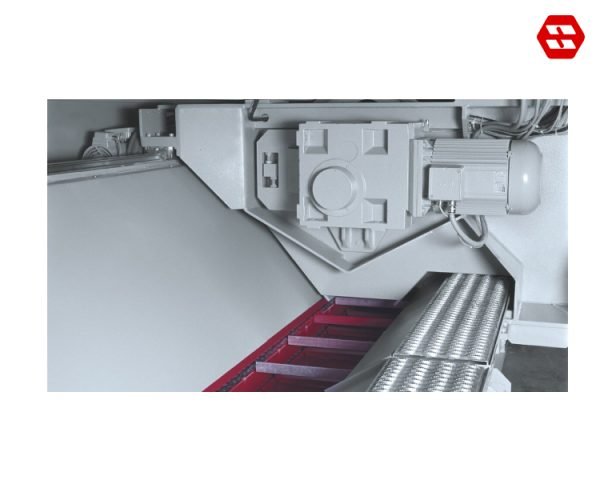

Servo Feed System
The BEHRINGER servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades.

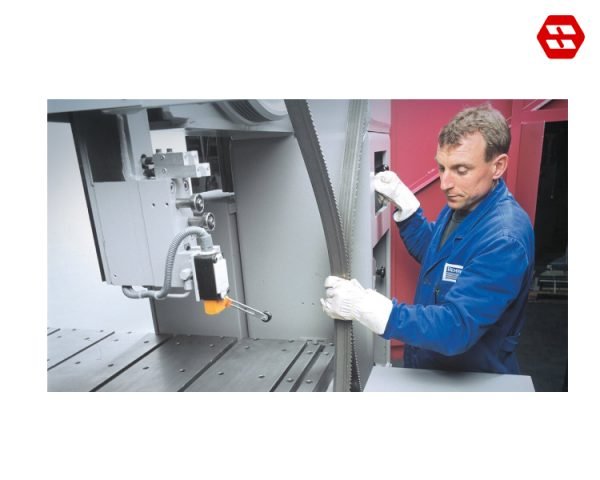

Quick Saw Blade change
Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

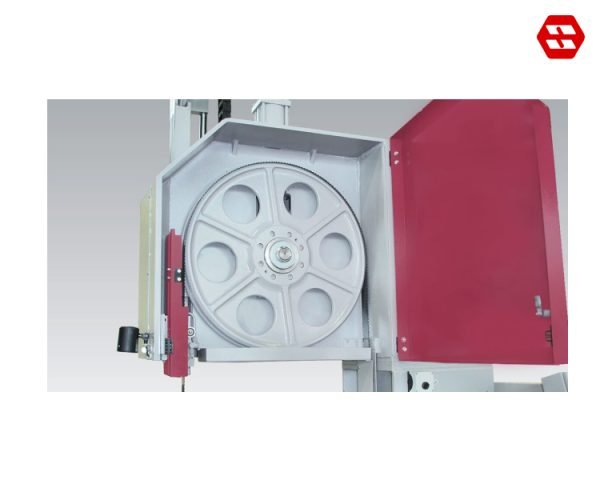

Band Guiding Parts Made of Grey Cast Iron
Crafted from durable grey cast iron, our band guiding parts ensure superior stability and precision in your bandsaw machine. Designed to withstand the rigors of continuous operation, these components offer enhanced vibration absorption, leading to smoother cuts and extended tool life.

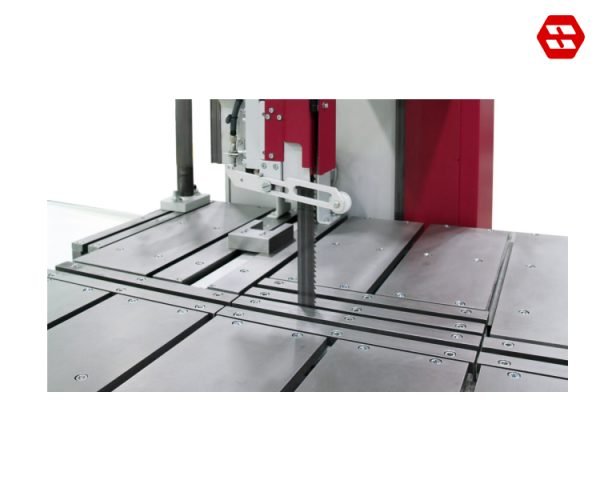

Precise Band Guides And Effective Chip Cleaning
Featuring precise band guides and an effective chip cleaning system, our saw ensures optimal cutting accuracy and efficiency.

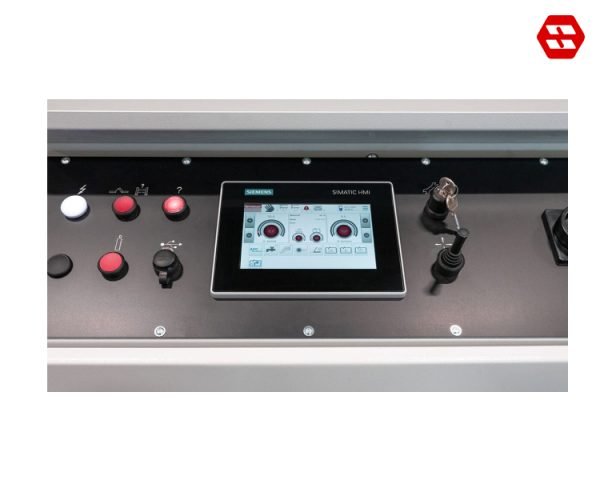

Intelligent Control
Equipped with intelligent control technology, our machine offers unparalleled precision and ease of use. This smart system enables automatic adjustments and real-time monitoring, ensuring optimal performance and accuracy in every operation.

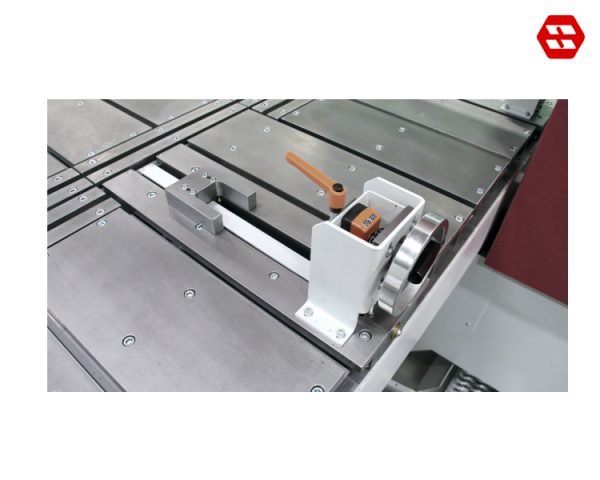

Application-Specific Table Variants
LPS vertical bandsaws can be adapted to suit your exact requirements. The material support table has a modular construction and can be equipped with a variety of different options with a spacing pattern of 250 mm.
Features of The Vertical Bandsaw LPS40-4

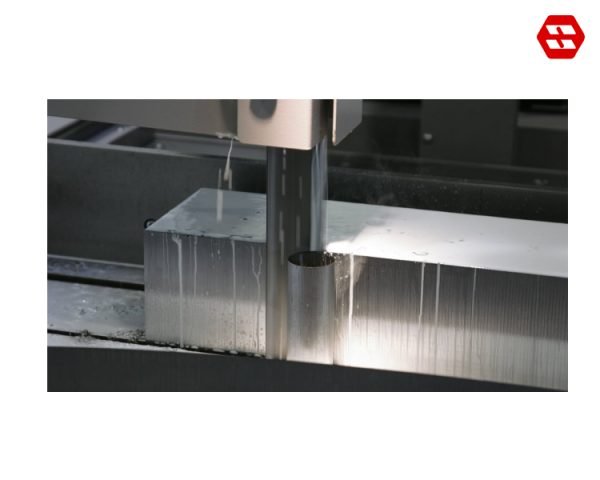

Unsurpassed Precision and Cutting Performance.
The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
A Carefully Designed Machine Concept.
The longitudinal cutting method is a typical feature of the BEHRINGER plate saws. The workpiece remains firmly clamped to the material table while the saw unit moves.
Technical Data Vertical Bandsaw LPS60-2
| Cutting Range | |
| Cutting length | 2,000 mm |
| Cutting width | 680 mm |
| Cutting height | 600 mm |
| Minimum cutting width | 15 mm |
| Minimum cutting height | 10 mm |
| Performance Characteristics | |
| Drive power | 5.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 5,800 x 54 x 1.3 mm |
| Total power | 13 kW |
| Supporting area inside table | 680 x 2,000 mm |
| Supporting area outside table | 680 x 2,000 mm |
| Dimensions and Weight | |
| Length | 4,450 mm |
| Width | 2,350 mm |
| Height | 3,070 mm |
| Weight | 8,100 kg |
| Material support height | 1,385 mm |
