Description
Vertical Bandsaw LPS40-120-4
Advanced technology for enhanced performance is the hallmark of the vertical bandsaw LPS40-120-4, tailored especially for cutting large plates and solid blocks. Featuring an exceptionally sturdy design, it excels in precision and cutting efficiency, particularly when handling challenging materials like inconel or titanium.

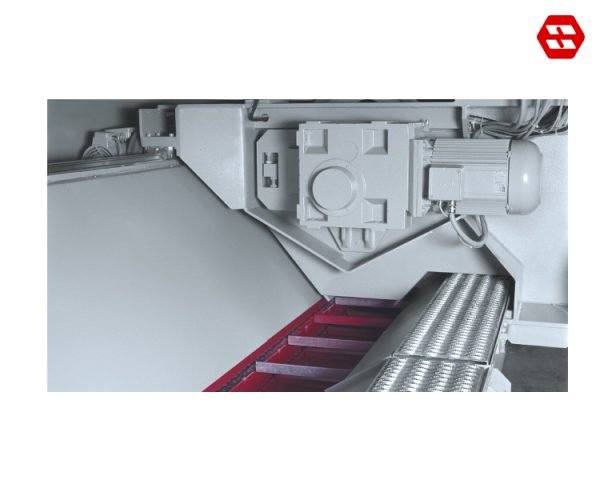

Servo Feed System
The BEHRINGER servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades.

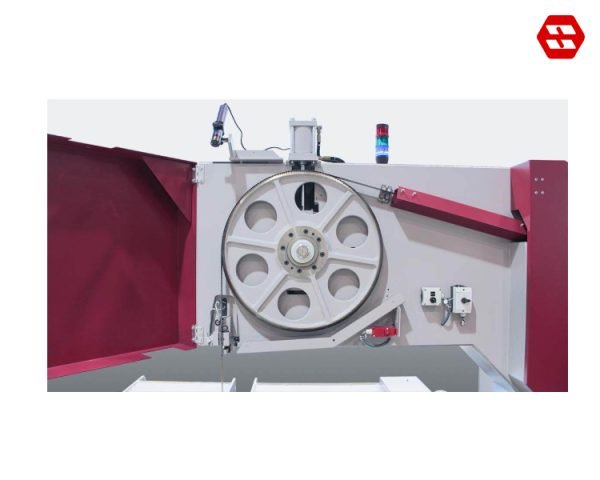

Band Guiding Parts Made of Grey Cast Iron
Crafted from durable grey cast iron, our band guiding parts ensure superior stability and precision in your bandsaw machine. Engineered to withstand rigorous use, these components offer enhanced vibration absorption, resulting in smoother cuts and prolonged tool lifespan.

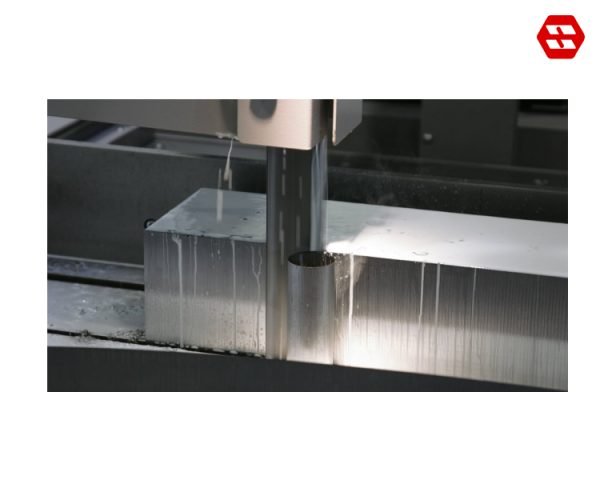

Unsurpassed Precise Plate Saw
Experience unrivaled precision with our precise plate saw. Engineered to deliver exact cuts, this cutting-edge machine sets the standard for accuracy in plate cutting.

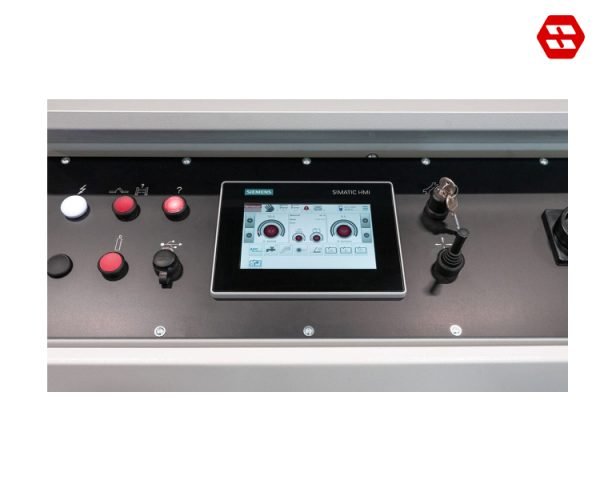

Intelligent Control
Empower your operations with intelligent control technology. Our cutting-edge system offers automated adjustments and real-time monitoring, ensuring optimal performance and precision. With intuitive interfaces and customizable settings, our intelligent control puts advanced capabilities at your fingertips, simplifying complex tasks and maximizing efficiency.

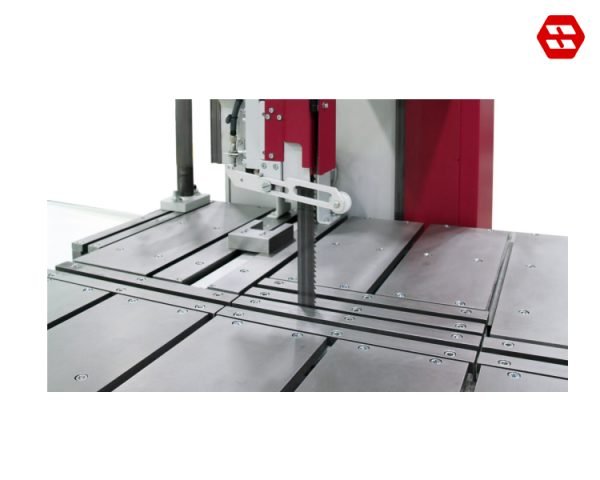

Perfect Blade Guidance and Chip Removal
Optimize your cutting process with our precision blade guidance and efficient chip removal system. Designed for accuracy and reliability, our blade guidance ensures consistent cuts, while the chip removal system keeps your workspace clear for uninterrupted operation.
Features of The Vertical Bandsaw LPS40-120-4
Unsurpassed Precision and Cutting Performance.
The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Quick Bandsaw Blade Change.
Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.
Modular Design.
The design of the block saw can be flexibly adapted to special requirements.
A Carefully Designed Machine Concept.
The longitudinal cutting method is a typical feature of the BEHRINGER plate saws. The workpiece remains firmly clamped to the material table while the saw unit moves.
Application-Specific Table Versions.
LPS vertical bandsaws can be adapted to suit your exact requirements.
Technical Data Vertical Bandsaw LPS40-120-4
| Cutting Range | |
| Cutting length | 4,000 mm |
| Cutting width | 1,200 mm |
| Cutting height | 400 mm |
| Minimum cutting width | 15 mm |
| Minimum cutting height | 10 mm |
| Performance Characteristics | |
| Drive power | 5.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 7,200 x 41 x 1.3 mm |
| Total power | 15 kW |
| Supporting area inside table | 1,200 x 4,000 mm |
| Supporting area outside table | 680 x 4,000 mm |
| Dimensions and Weight | |
| Length | 7,750 mm |
| Width | 3,600 mm |
| Height | 3,450 mm |
| Weight | 17,500 kg |
| Material support height | 1,385 mm |
