Description
HBE663A Performance
The HBE663A Performance automatic saw stands out as the expert within the HBE Performance series, specifically designed for cutting material bundles. With its dual vice and retracting fixed jaws, it ensures precise positioning, even for strapped bundles.

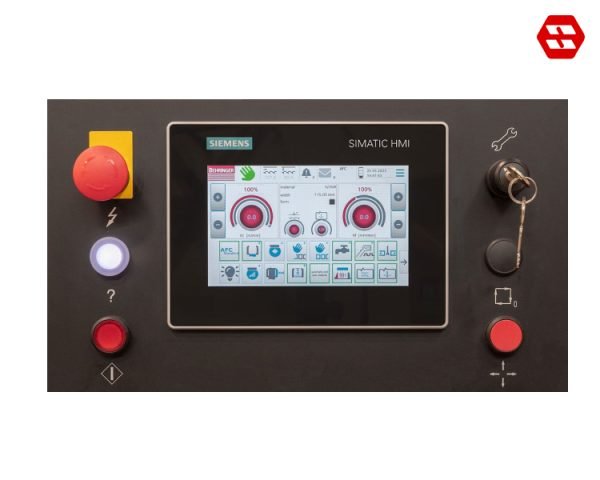

Intuitive BehrCtrl10 Touch Control
Experience intuitive control: BehrCtrl10 touchscreen

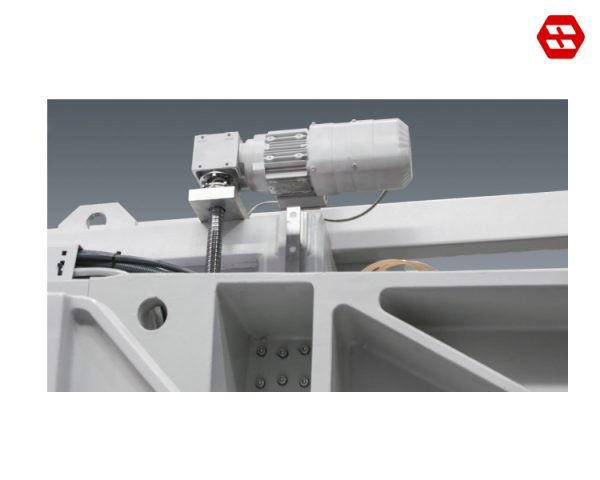

Servo-Downfeed With Cutting Pressure Control
Achieve precise cuts with automatic adjustment of cutting pressure, ensuring optimal performance and blade longevity.

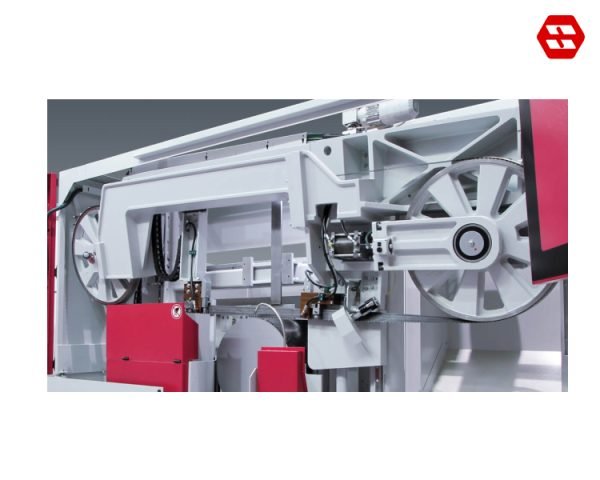

Cast Iron Band Guiding Parts
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

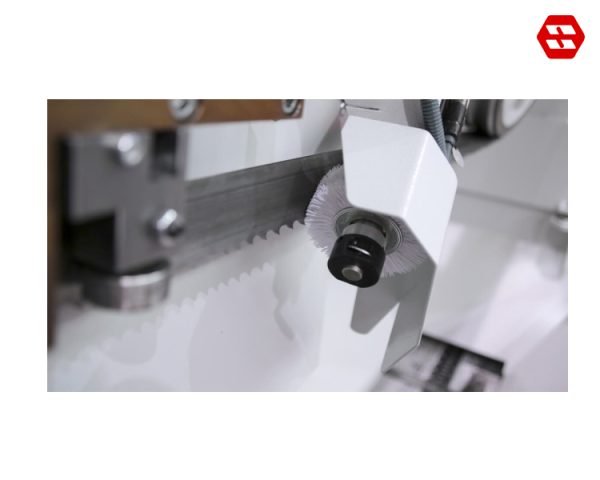

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.
Features Of The Production Bandsaw
HBE663A Performance
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Reliable Sawing of Bundles.
Is achieved thanks to the combination of double clamping vice, retracting fixed vice jaws and solid vertical clamping devices.
Powerful Chip Conveyor.
Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

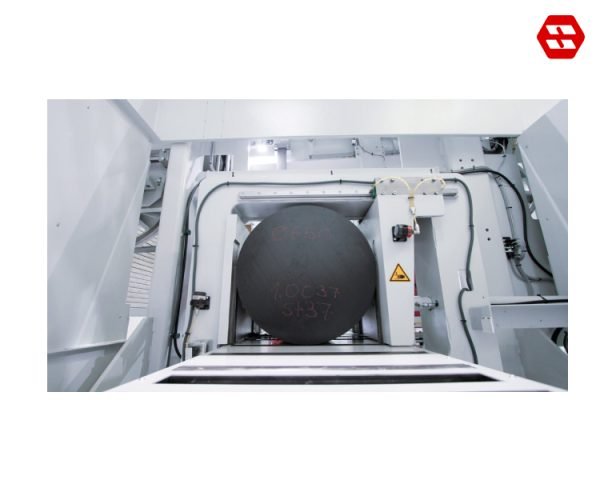

Robust Feeding Gripper.
Precise material handling of heavy workpieces thanks to the robust feeding gripper with retracting fixed vice jaw.
Auto-Feed-Control.
Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.
3° Incline of The Saw Band.
Increases the cutting performance when sawing hollow profiles and beams and reduces the formation of burrs.
Double Clamping Vice.
Offers process reliability - especially when sawing bundles or making single cuts.
Economical Use of Carbide Saw Blades.
Due to robust design, use of latest servo technology and well dimensioned chip disposal.
Technical Data Production Bandsaw HBE663A Performance
| Cutting Range | |
| Cutting range 90° round | 660 mm |
| Cutting range 90° flat | 710 x 660 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 540 mm (option 1,500 | 3,000 mm) |
| Drive power | 5.5 kW |
| Blade speed | 10 – 110 m/min |
| Saw blade dimensions | 8,750 x 54 (67) x 1.6 mm |
| Rest piece length in automatic operation | 50 mm |
| Total power | 12 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,250 mm |
| Width | 4,400 mm |
| Height | 2,760 mm |
| Weight | 6,500 kg |
| Material support height | 800 mm |
