HBM540A Performance Automatic
The innovative SpeedCutting technology incorporated into the HBM540A high-speed saw series introduces cutting performance previously deemed unattainable. Particularly noteworthy is the HBM540A's proficiency when cutting tool steels, stainless steels, or high-alloy materials like Inconel or Titanium.

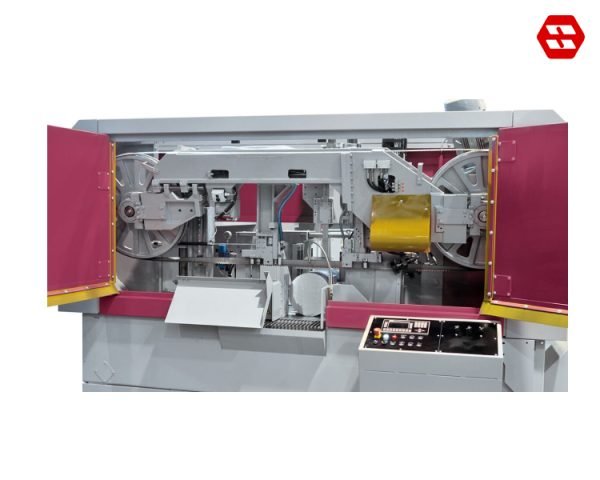

High-Performance Sawing Unit With BEHRINGER Speed-Cutting Technology
The HBM high-performance aluminum sawing unit delivers precision and efficiency in cutting aluminum and similar non-ferrous metals. Designed for swift and accurate cuts, it ensures optimal performance in aluminum ingots and billets processing.

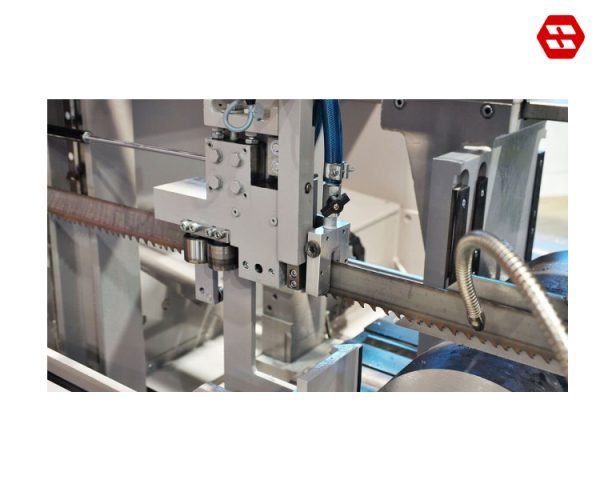

HBM Band Guide With High-Performance Cooling
The HBM band guide with high-performance cooling ensures optimal temperature control for precision cutting, maximizing blade life and cutting efficiency.

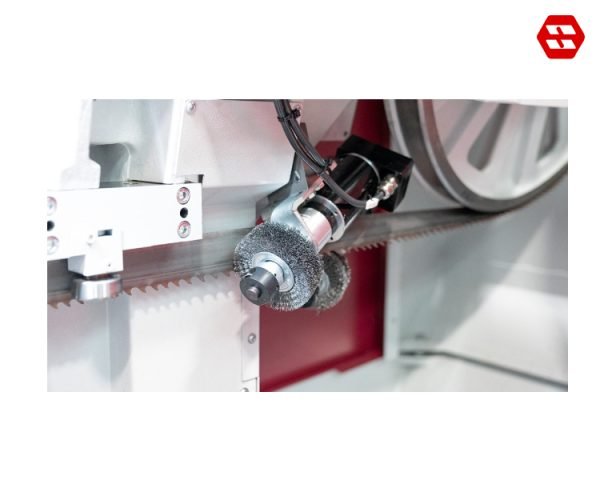

Duplex Chip Brush
The Duplex chip brush is an efficient tool designed for chip removal in machining operations. With its dual-brush system, it effectively clears chips from workpieces and machine surfaces, ensuring uninterrupted workflow and optimal machining precision.
Cast Iron Band Guiding Parts
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Features of The Production Bandsaw HBM540A
Optimum Chip Disposal.
Highest cutting performance requires high standards of chip disposal. The wide, funnel-shaped machine base allows chips to fly freely into the chip conveyor with integrated coolant tank below.
Prepared For Automation.
A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems.
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Economical Use of Carbide Saw Blades.
Due to robust design, use of latest servo technology and well dimensioned chip disposal.
Technical Data Production Bandsaw HBM540A
| Cutting Range | |
| Cutting range 90° round | 540 mm |
| Cutting range 90° flat | 630 x 540 mm |
| Smallest dimension to be sawn round | 15 mm |
| Smallest dimension to be sawn flat | 12 x 12 mm |
| Performance Characteristics | |
| Feeding length single stroke | 500 mm |
| Drive power | 7,5 kW |
| Blade speed | 13 – 130 m/min |
| Saw blade dimensions | 7,500 x 54 x 1.6 mm |
| Rest piece length in automatic operation | 40 mm |
| Total power | 12 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,650 mm |
| Width | 4,385 mm |
| Height | 2,700 mm |
| Weight | 5.100 kg |
| Material support height | 800 mm |
