Description
Large Bandsaw HBP1100

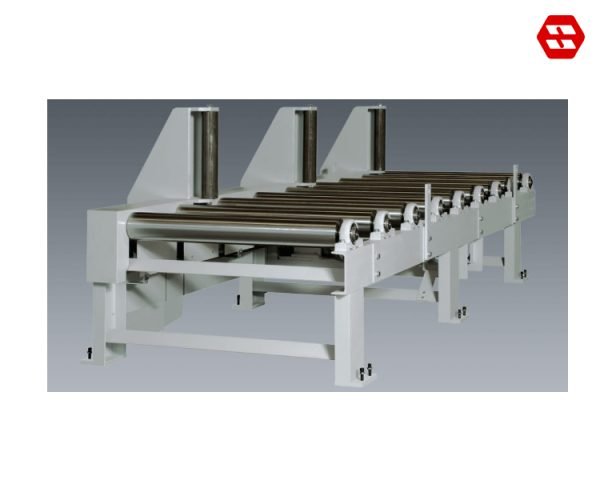

The large horizontal bandsaws from BEHRINGER, equipped with roller conveyors, stand as top-tier all-rounders in steel finishing and the steel trade. Excelling in cutting long solid materials—whether rolled or rough turned—or handling large pipes, these saws significantly enhance productivity.

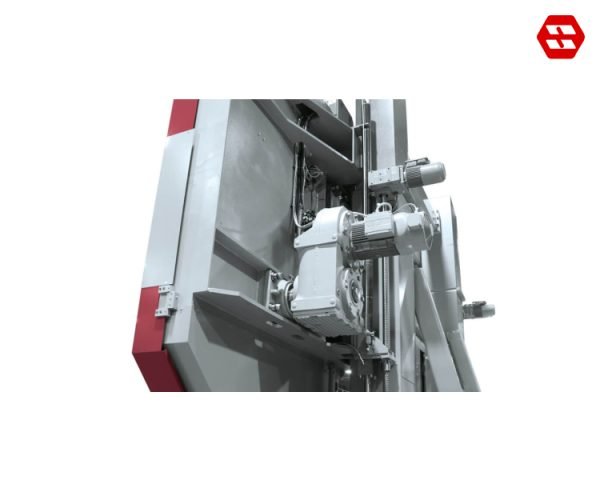

Servo Feed System
The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.
Cast Iron Band Guiding Parts
Cast iron band guiding parts provide essential support and stability to bandsaw blades during cutting operations. Renowned for their durability and heat resistance, these components ensure precise and consistent cuts in metalworking applications.
Carbide Blade Guides
Carbide blade guides represent the pinnacle of precision and durability in bandsaw blade guidance. Crafted from high-quality carbide materials, these guides offer exceptional wear resistance and thermal stability, ensuring prolonged performance even in demanding cutting environments.

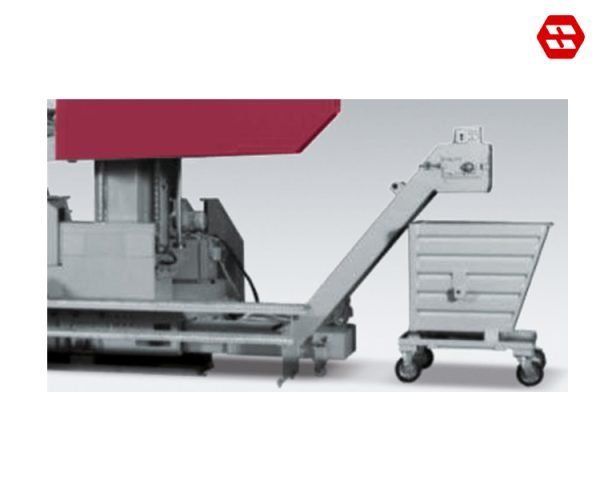

Process-Reliable Chip Disposal by Chain Conveyor
Achieve process-reliable chip disposal with a chain conveyor system. Designed for seamless removal of metal chips generated during machining processes, this solution ensures uninterrupted production by efficiently transporting chips away from the work area.

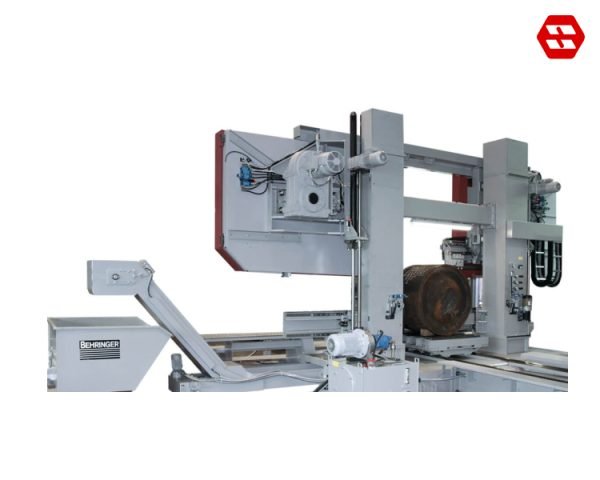

Optimum Accessibility
BEHRINGER attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs and simplifying saw blade changes.
Duplex Chip Brushes
Duplex chip brushes are essential tools for efficient chip removal in machining operations. Featuring dual brush heads, these tools effectively sweep away debris and chips from workpieces and machinery, ensuring cleanliness and preventing damage.
Features of The Large Bandsaw HBP1100
Blade Guiding parts in Grey Cast Iron.
By dampening vibrations directly at the sawing point, blade-guiding elements made by BEHRINGER help to increase tool service life.
Precise Guiding System in Portal Design.
The portal design of the machine concept is the most recognizable feature of the BEHRINGER large band saws.
Efficient Chip Removal.
The chip conveyor is located directly underneath the sawing point, which catches the saw chips and surplus cooling emulsion.
Powered Duplex Chip Brushes.
Actively clean the blade and prevent chips being drawn into the cutting channel.
Strong Saw Drive.
BEHRINGER large band saws feature a high-torque frequency controlled saw drive with heavyduty hollow shaft gearbox.
Technical Data Large Bandsaw HBP1100
Cutting Range | |
Cutting range 90° round | 1,100 mm |
Cutting range 90° flat | 1,100 x 1,100 mm |
Smallest dimension to be sawn round | 100 mm |
Smallest dimension to be sawn flat | 100 x 50 mm |
Performance Characteristics | |
Drive power | 15 kW |
Blade speed | 8 – 84 m/min |
Saw blade dimensions | 12,930 x 80 x 1.6 mm |
Total power | 30 kW |
Dimensions and Weight | |
Length | 3,100 mm |
Width | 7,400 mm |
Height | 3,850 mm |
Weight | 14,000 kg |
Material support height | 700 mm |
