Description
Metal Cutting HBE420-723
The horizontal bandsaw HBE420-723 perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique BEHRINGER features. With its extensive range of applications, it reliably covers all the requirements of small and medium-sized workshops.

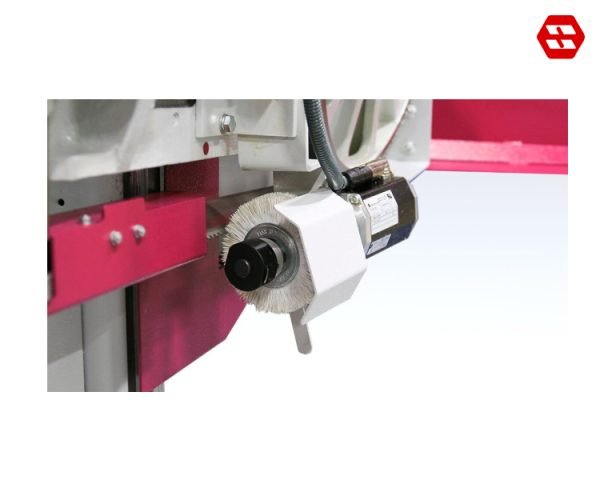

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

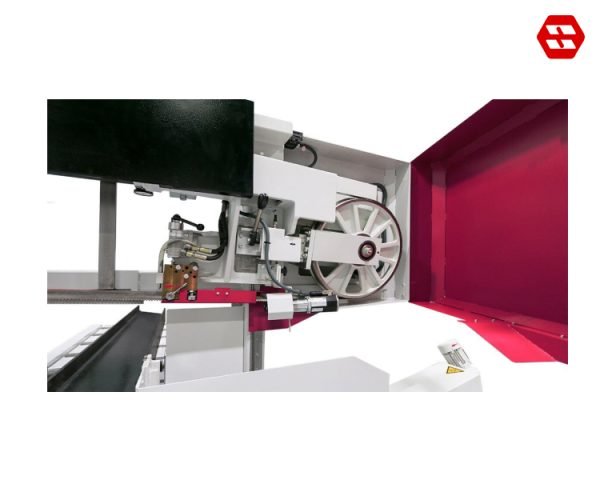

Cast Iron Band Guiding Parts
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

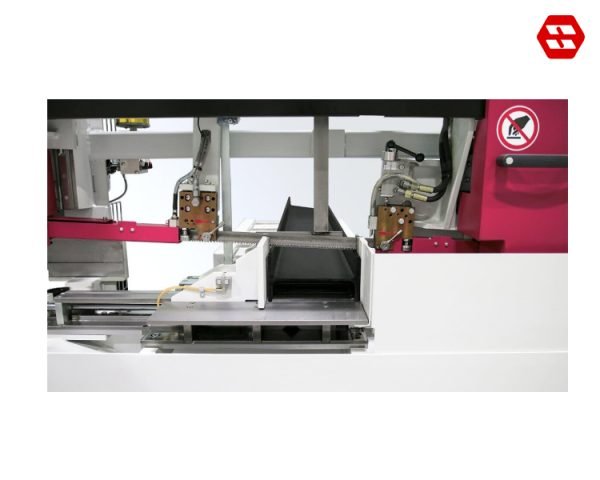

Double Clamping Vice of The Horizontal Bandsaw
Is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.
Features of The Metal Cutting Bandsaw HBE420-723
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Energy Efficient.
The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Technical Data Metal Cutting Bandsaw
HBE420-723
| Cutting Range | |
| Cutting range 90° round | 420 mm |
| Cutting range 90° flat | 700 x 400 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 8 mm |
| Performance Characteristics | |
| Drive power | 5.2 kW |
| Blade speed | 15 – 130 m/min |
| Saw blade dimensions | 6,840 x 41 x 1.3 mm |
| Rest piece length | 40 mm |
| Total power | 11 kW |
| Dimensions and Weight | |
| Length | 1,230 mm |
| Width | 3,220 mm |
| Height | 2,500 mm |
| Weight | 2.500 kg |
| Material support height | 800 mm |
