Description
Metal Cutting HBE610-1256
The HBE610-1256 stands as a contemporary semi-automatic horizontal bandsaw, engineered for cutting structural steel, profiles, and plates with its sturdy build. Standard features include a servo motor-driven saw feed, BEHRINGER cutting pressure control, automatic guide arm adjustment, and a robust double clamping vice.

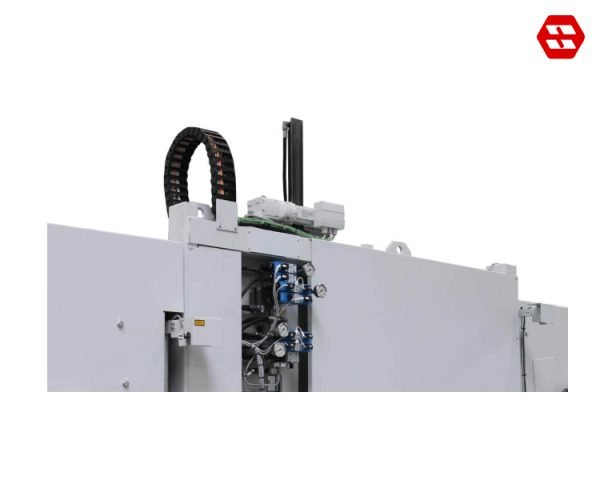

Servo Feed System With BEHRINGER Cutting Pressure Control
The servo feed system with BEHRINGER cutting pressure control is an advanced feature in bandsaw machinery, enhancing cutting precision and efficiency. Utilizing servo motor technology, it ensures smooth and accurate material feed, while the BEHRINGER cutting pressure control optimizes cutting forces for different materials.

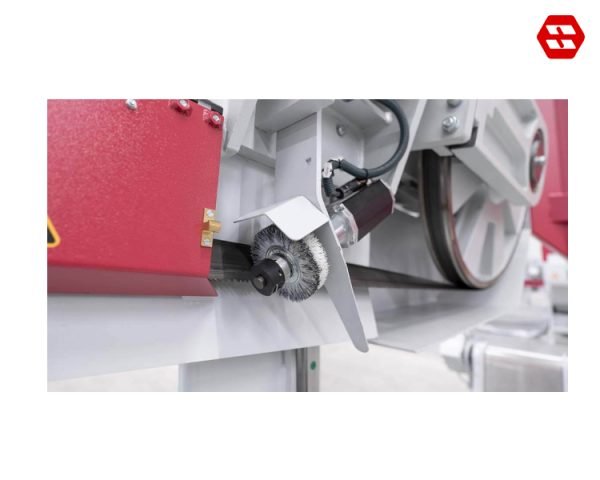

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

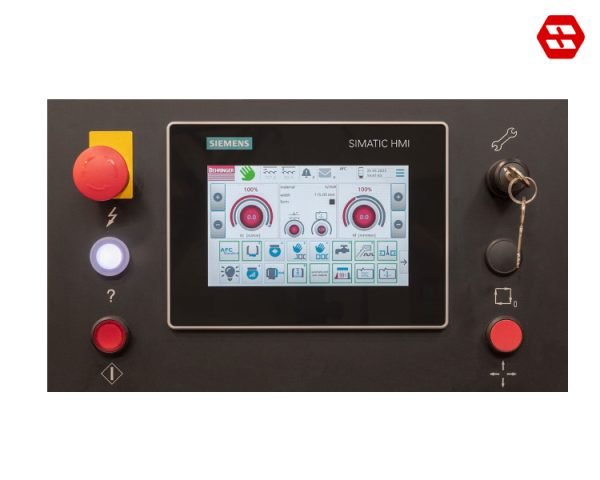

Intuitive BehrCtrl10 Touch Control
The Intuitive BehrCtrl10 touch control is a cutting-edge interface designed to streamline operation and enhance user experience in machinery and equipment.

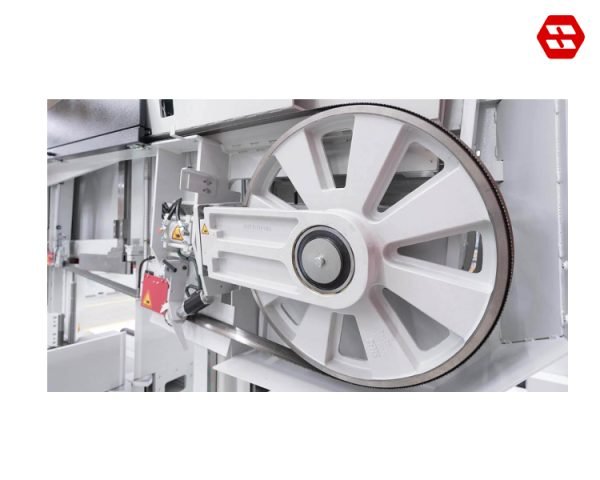

Cast Iron Band Guiding Parts
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Features of The Metal Cutting Bandsaw HBE610 -1256
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Double Clamping Vice.
Is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.
Powerful Chip Conveyor.
Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Energy Efficient.
The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.
Technical Data Metal Cutting Bandsaw
HBE610 - 1256
| Cutting Range | |
| Cutting range 90° round | 610 mm |
| Cutting range 90° flat | 1,250 x 610 mm |
| Smallest dimension to be sawn round | 30 mm |
| Smallest dimension to be sawn flat | 30 x 30 mm |
| Performance Characteristics | |
| Drive power | 7.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 10,000 x 54 (67) x 1.6 mm |
| Rest piece length | 45 mm |
| Total power | 16 kW |
| Dimensions and Weight | |
| Length | 1,400 mm |
| Width | 4,850 mm |
| Height | 3,240 mm |
| Weight | 4,500 kg |
| Material support height | 800 mm |
