Description

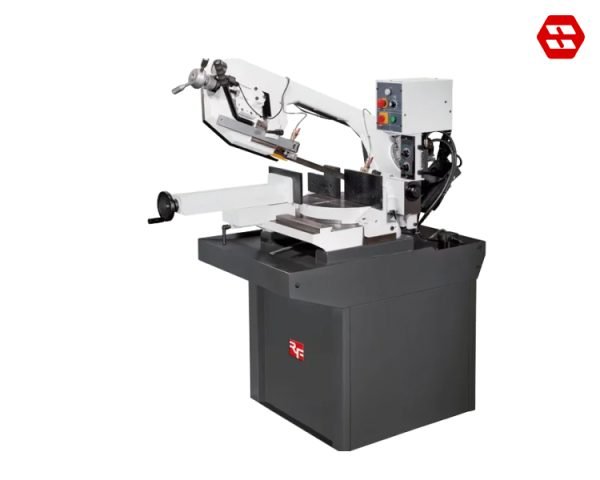

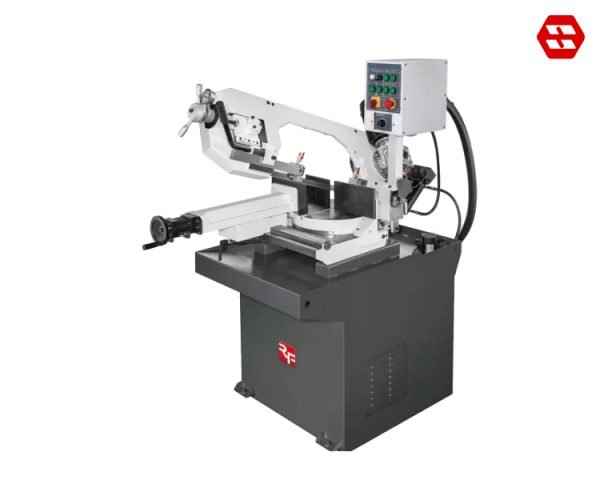

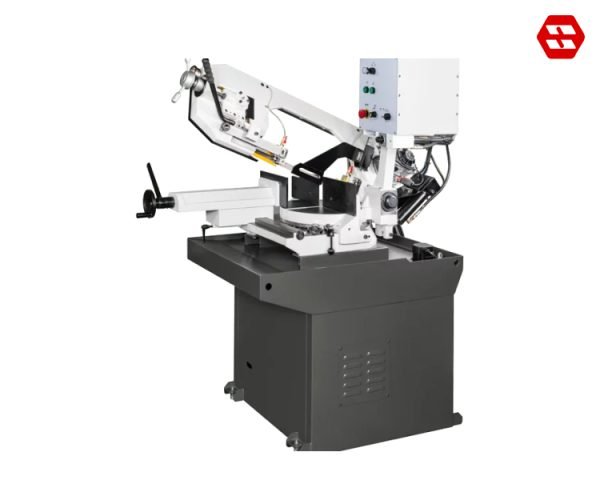

Manual Metal Bandsaw RF-320
Engineered for stability during operation, its adjustable blade speed ensures optimal performance for different materials and thicknesses. Featuring user-friendly controls and a durable bi-metal blade, the RF-320 delivers consistent and accurate cuts, making it an essential tool for any cutting project requiring reliability and precision.
Cutting Capacity
Choose the right bandsaw for your needs based on its cutting capacity.
Features
Table Specifications
| Item | RF-320 | RF-320V | RF-320VHB | RF-320AA |
|---|---|---|---|---|
| Main Motor HP | 1.5(3-phase) | 1.5(3-phase) | 1.5(3-phase) | 1.5(3-phase) |
| Speed MT/min | 60HZ /43-88 50HZ /36-73 | 60HZ /25-90 | 60HZ /25-90 | 60HZ /43-88 |
| Feedrate Ft/min | 60HZ /141-288 50HZ /118-239 | 60HZ /82-295 | 60HZ /82-295 | 60HZ /141-288 |
| Saw Blade mm (WxTxL) | 27×0.9×2750 | 27×0.9×2750 | 27×0.9×2750 | 27×0.9×2750 |
| Saw Blade inch (WxTxL) | 1.06×0.035×108.27 | 1.06×0.035×108.27 | 1.06×0.035×108.27 | 1.06×0.035×108.27 |
| Machine Dimensions mm (LxWxH) | 1400x700x1540 | 1400x700x1540 | 1400x700x1540 | 1400x700x1540 |
| Machine Dimensions inch (LxWxH) | 55x28x61 | 55x28x61 | 55x28x61 | 55x28x61 |
| Packing Dimensions mm (LxWxH) | 1520x780x1015 | 1520x780x1015 | 1520x780x1015 | 1520x780x1015 |
| Packing Dimensions inch (LxWxH) | 60x31x40 | 60x31x40 | 60x31x40 | 60x31x40 |
| Machine Weight NW/GW | 315/345 kgs 695/761 lbs | 315/345 kgs | 315/345 kgs | 390/440 kgs |
| No.of Machines Packed in 20″ container | 20 sets | 20 sets | 20 sets | 20 sets |
