SAWING
RF-330 (1)

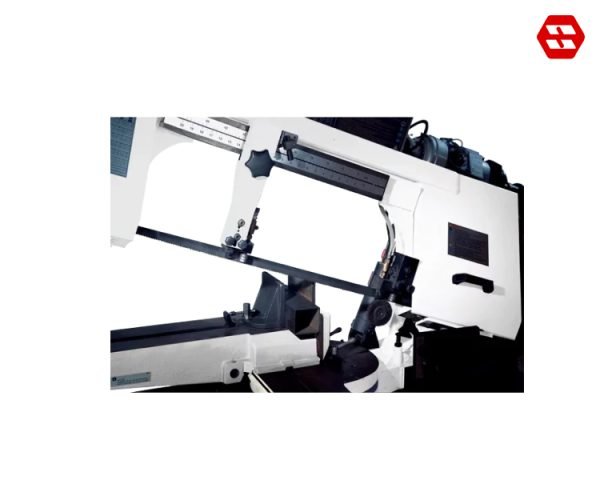

RF-330 (2)

Bandsaw Machine RF-330 RongFu

Merupakan alat yang efisien yang dirancang untuk pemotongan logam presisi. Dengan konstruksi kokoh dan motor bertenaga, gergaji ini menghasilkan pemotongan akurat pada berbagai material. Desainnya yang ringkas dan kontrol yang mudah digunakan membuatnya cocok untuk lingkungan industri. Memudahkan proses pemotongan, meningkatkan produktivitas sekaligus mempertahankan hasil berkualitas tinggi.
Categories: , , ,

Description

10” X 18″ Metal Bandsaw RF-1018R

With its advanced features and sturdy construction, the RF-1018R ensures smooth operation and high-quality results when cutting various materials. Ideal for professionals and hobbyists alike seeking superior performance in their cutting operations.

RF-1018R (2)

Cutting Capacity

Choose the right bandsaw for your needs based on its cutting capacity.

Cutting Capacity RF-330

Features

RF-330N

New Type One-piece Stand with Swivel Control Box for Very Convenient Operation.
High Efficiency Gear Drive System with Variable Step Pulley for Fast Speed Changes.
Enlarged Hydraulic Cylinder & Buffer Spring for Enhanced Cutting Stability.
Tungsten Blade Guide for Cutting Stability & Extended Blade Life.
Cutting Angle From -45º – 60º.
Cleaning Hose & Nozzle for Easy Chip Flushing.
Coolant System for Wet Cutting.
Comes with Bi-metal Blade, Chip Brush, & Length Stop Set.
Optional Selection Includes Laser Indicator & Hydraulic Tension Meter.

RF-330NA

Professional Semi-auto Hydraulic System for consistent & accurate cutting cycle.

RF-330NAA

Hydraulic Vise System for Secure Clamping Variable Size Workpieces.

Table Specifications

ItemRF-330NRF-330NARF-330NAA
Main Motor HP222
Speed MT/min60HZ / 30~120
50HZ / 25~100		60HZ / 30~120
50HZ / 25~100		60HZ / 30~120
50HZ / 25~100
Speed Ft/min60HZ / 98~398
50HZ / 81~327		60HZ / 98~398
50HZ / 81~327		60HZ / 98~398
50HZ / 81~327
Saw Blade mm (WxTxL)27×0.9×381027×0.9×381027×0.9×3810
Saw Blade inch (WxTxL)1.06×0.035×1501.06×0.035×1501.06×0.035×150
Machine Dimensions mm (LxWxH)2030x1315x14252030x1315x14252030x1315x1425
Machine Dimensions inch (LxWxH)80×51.7×56.180×51.7×56.180×51.7×56.1
Packing Dimensions mm (LxWxH)2120x940x15152120x940x15152120x940x1515
Packing Dimensions inch (LxWxH)83.5x37x6083.5x37x6083.5x37x60
Machine Weight NW/GW590/630 kgs
1301/1389 lbs		610/650 kgs
1345/1390 lbs		610/650 kgs
1345/1390 lbs
No.of Machines
Packed in 20″ container		6 sets6 sets6 sets
