SAWING
RF-335 (1)

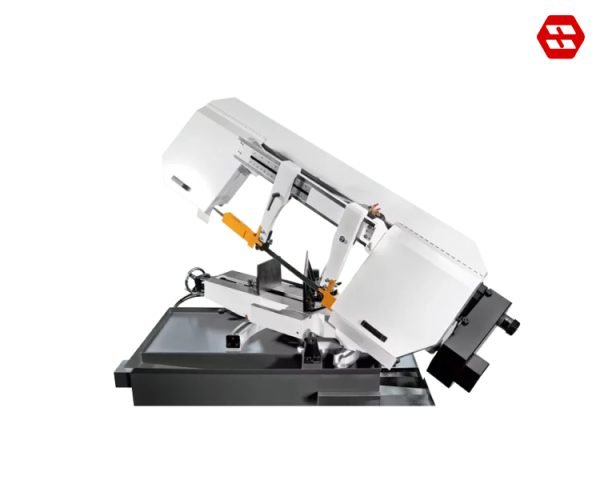

RF-335 (2)

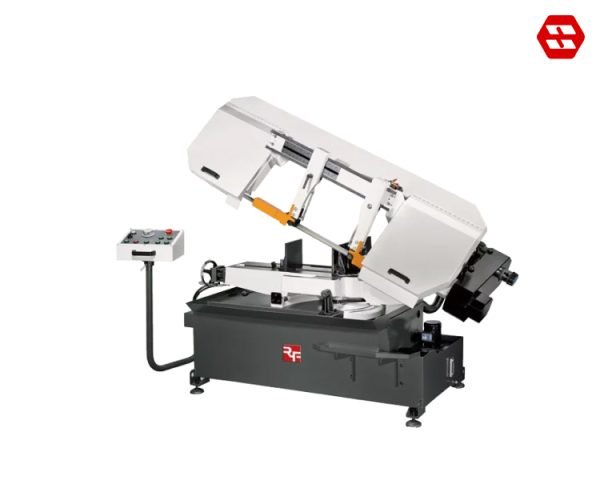

RF-335 (3)

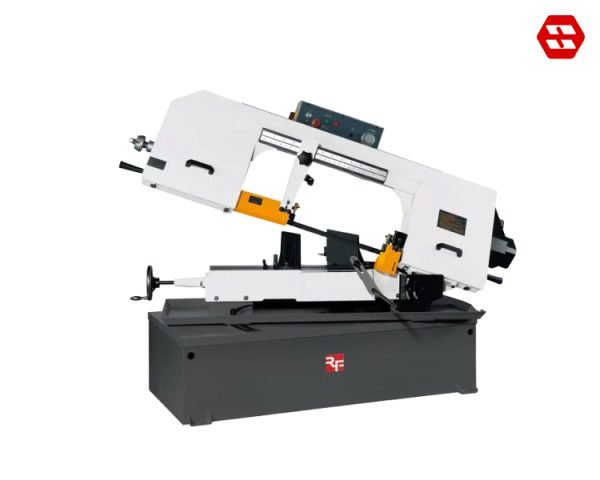

RF-335 (4)

Bandsaw Machine RF-335 RongFu

Merupakan alat serbaguna yang dirancang untuk pemotongan logam presisi. Menampilkan yang kuat dan konstruksi yang kokoh, gergaji ini menghasilkan pemotongan yang akurat pada berbagai material. Desainnya yang ringkas dan mudah digunakan membuatnya cocok untuk industri. Memiliki kontrol yang mudah, memastikan kemudahan pengoperasian dan kinerja pemotongan yang konsisten. Meningkatkan efisiensi sekaligus mempertahankan hasil berkualitas tinggi.
Categories: , , ,

Description

13″ Semi Metal Bandsaw RF-335

Its compact design integrates seamlessly into any workspace, while offering powerful cutting action and adjustable speeds to accommodate various materials and thicknesses.

RF-335 (1)

Cutting Capacity

Choose the right bandsaw for your needs based on its cutting capacity.

Features

RF-335

Cast Wheels & Base with Heavy Gauge Steel Saw Bow.
Easy To Operate Control Panel.
Heavy Duty Cast Machine Base & Cast Blade Wheels for Rigidity & Stability.
4 Step Pulley Heavy Duty Gearbox.
Large Scale for Easy Counter Blade Guide Position Setting.
Carbide Guide with Bearings for Increased Stability, Extended Blade Life, & Reduced Consumables Cost.
Lead Screw & Rack Vise System Provide Quick & Firm Clamping.
Adjustable Blade Guide Arm for Increased Work Piece Precision & Extended Saw Blade Life.
Clamping Vise Available for Angle Cutting (0º – 45º).
Suitable for Cutting Tubes, Profiles, Solids Bars, Ferrous & Nonferrous Materials.
Coolant System for Wet Cutting.
Wide Chip Tray with Filter net for Easy Chip Collecting & Cleaning.
Comes with bi-metal blade, chip brush & length stop set.

RF-335RV

Swivel + Variable Speed.

RF-335RVAA - Semi Auto Saw Bow Lifting

Hydraulic Vise.
Saw Bow Lifting.

Table Specifications

ItemRF-335RF-335RVRF-335RVAA
Main Motor HP3 (2.2kw)(3-phase)3 (2.2kw)(3-phase)3 (2.2kw)(3-phase)
Speed MT/min60HZ / 25, 40,56, 8560HZ / 25~9060HZ / 25~90
Speed Ft/min60HZ / 82, 131, 183, 27860HZ / 82~29560HZ / 82~295
Saw Blade mm (WxTxL)34×1.1×410034×1.1×410034×1.1×4100
Saw Blade inch (WxTxL)1-3/8×0.043×161.41.34×0.043×161.41.34×0.043×161.4
Machine Dimensions mm (LxWxH)2200x860x13602200x860x12402200x860x1240
Machine Dimensions inch (LxWxH)86.6×32.5×5586.6×32.5×5586.6×32.5×55
Packing Dimensions mm (LxWxH)2200x830x11602200x825x14002200x825x1400
Packing Dimensions inch (LxWxH)88.5×32.5×5586.6×32.5×5586.6×32.5×55
Machine Weight NW/GW580/640 kgs
1275/1410 lbs		700/760 kgs
1540/1670 lbs		700/760 kgs
1540/1670 lbs
No.of Machines
Packed in 20″ container		7 sets / SKD 14 sets7 sets / SKD 14 sets7 sets / SKD 14 sets
No.of Machines
Packed in 40″ container		14 sets/ SKD 28 sets14 sets/ SKD 28 sets14 sets/ SKD 28 sets
