Description
Automatic Cold Saw VMS 370 A
The VMS 370 A model features automatic operation capabilities, enhancing productivity and reducing labor requirements. With its advanced design and reliable performance, it's an ideal choice for a wide range of metalworking applications.

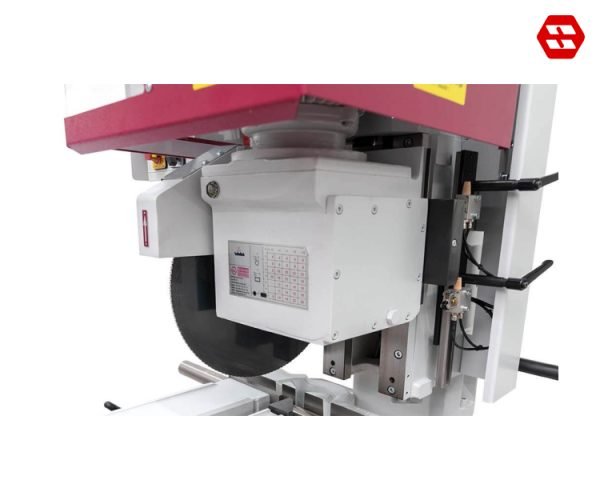

Worm Gearbox From Our Own Production
Our self-produced worm gearbox is a pinnacle of precision engineering and reliability. Crafted in-house with meticulous attention to detail, it offers exceptional performance and durability in various industrial applications.

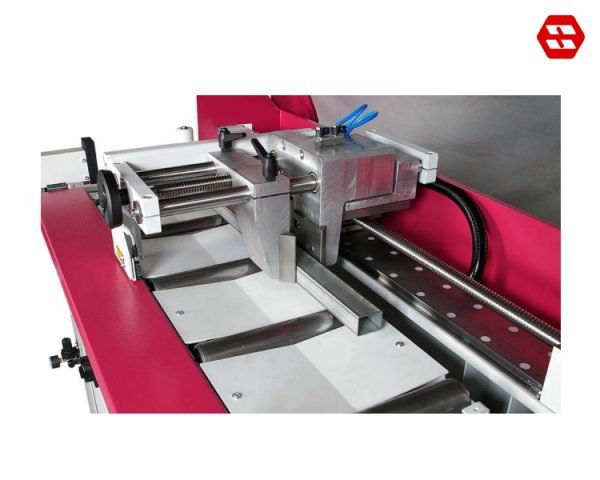

NC Controlled Feeding Fripper
The feed axis turns the robust VMS into a full-featured automatic circular saw that can also cut mitres. The VMS automatic machines are a good compromise between flexible use in the workshop and automated cutting, for example in parts production

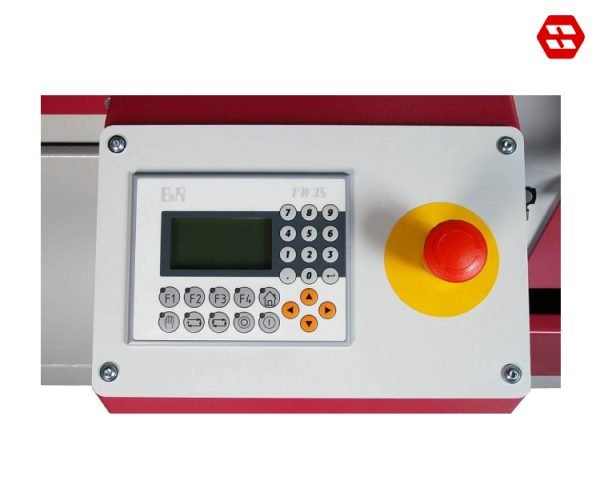

User-Friendly Control of The Automatic Cold Saw
Experience seamless control with our user-friendly interface for the Automatic Cold Saw. Effortlessly navigate through cutting parameters and commands with intuitive controls, ensuring precise and efficient operation.

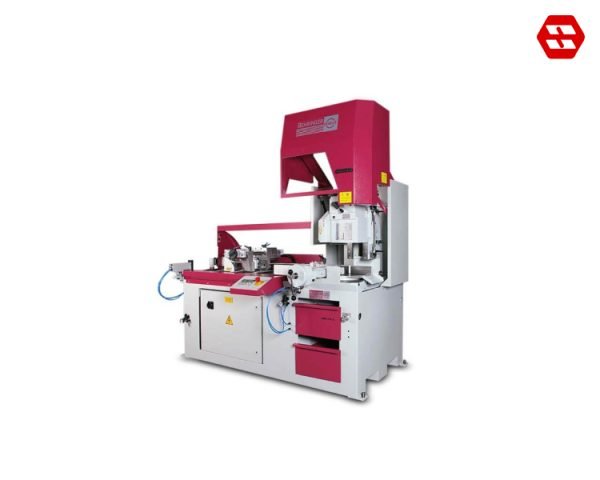

Excellent Accessibility
Experience unparalleled accessibility with our cutting-edge design. Our Automatic Cold Saw boasts exceptional accessibility features, ensuring effortless maintenance and operation.

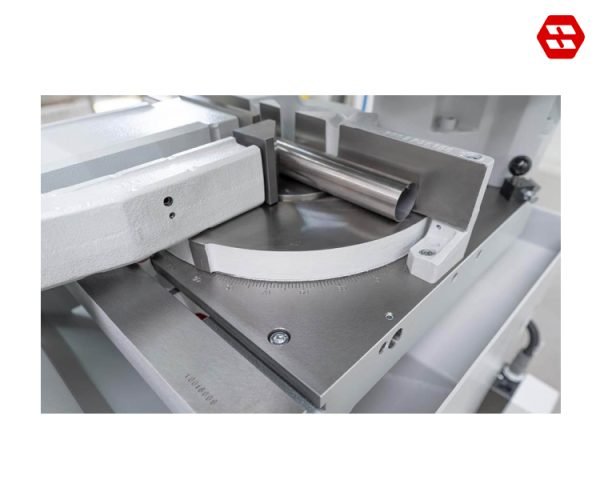

Convenient Mitre Adjustment
Achieve precision cuts effortlessly with our Automatic Cold Saw's convenient mitre adjustment feature. Seamlessly adjust cutting angles for precise bevels and mitres, enhancing versatility and accuracy in metalworking tasks.

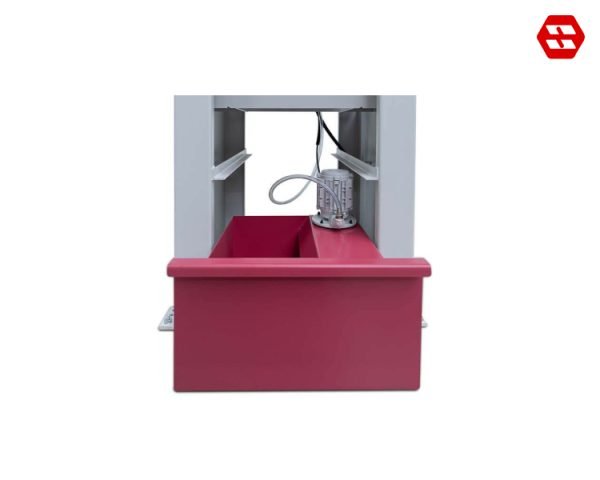

Coolant Device
Keep your cutting operations running smoothly with our Automatic Cold Saw's advanced coolant device. Designed for optimal performance, this feature ensures efficient cooling and lubrication during metal cutting processes, extending blade life and enhancing cutting precision.

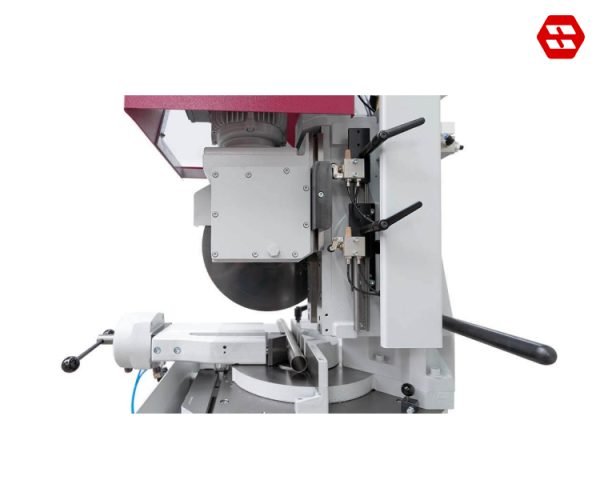

Convenient Stroke Adjustment of The Saw Blade
Effortlessly tailor your cutting operations with our Automatic Cold Saw's convenient stroke adjustment feature. Achieve precise cuts by easily adjusting the saw blade's stroke length to suit various material thicknesses and cutting requirements.
Features of The Automatic Cold Saw VMS 370 A
Sturdy Machine Base.
The heavy machine stand and the vibration-damping cast iron components made by BEHRINGER ensure a low-vibration sawing process and thus an increase in tool life.
Clean Machine Design.
The coolant unit and the chip drawer are integrated into the machine base.
User Friendly Mitre Adjustment.
This allows changing mitre angles to be set precisely and quickly.
Automatic Saw Feed.
The semi-automatic model with hydro-pneumatic saw feed and quick clamping device offers a high level of operating comfort as well as consistent cutting quality.
Comfortable Stroke Adjustment.
The entry and exit points of the saw blade can be conveniently adjusted using two limit switches.
Worm Gear Unit With EISELE Shock-Absorbing Feature.
An ideally designed gearbox from our own production offers long blade life and maximum durability.
Large Dimensioned Protective Cover.
Ensures an easy and quick saw blade change and a high level of safety during work.
Technical Data Cold Saw VMS 370 A
| Cutting Range | |
| Flat 90° | 200 x 100 mm |
| Flat 45° | 140 x 100 mm |
| Flat 30° | 100 x 100 mm 1) |
| Square 90° | 120 mm 2) |
| Square 45° | 100 mm |
| Square 30° | 90 mm 1) |
| Round 90° | 130 mm |
| Round 45° | 130 mm |
| Round 30° | 105 mm 1) |
| Performance Characteristics | |
| Feeding length single stroke | 800 mm |
| Drive power | 2.0 / 2.6 kW |
| RPM standard | 17 / 34 – 34 / 68 min-1 |
| RPM optional | 8 / 16 / 32 / 64 min-1 |
| Saw blade diameter | 370 mm |
| Saw feed | hydro-pneumatic |
| Material feed | ball screw |
| Material clamping | pneumatic |
| Dimensions and Weight | |
| Length | 3,100 mm |
| Width | 1,500 mm |
| Height | 2,000 mm |
| Weight | 1,060 kg |
| Material support height | 920 mm |
