Tube Cutting Saw PSU 450 GS
Equipped with a powerful circular saw, it delivers clean and precise cuts, ensuring high-quality results consistently. Whether for industrial manufacturing or fabrication projects, the PSU 450 GS enhances productivity and versatility, making it an ideal choice for demanding tube cutting applications.

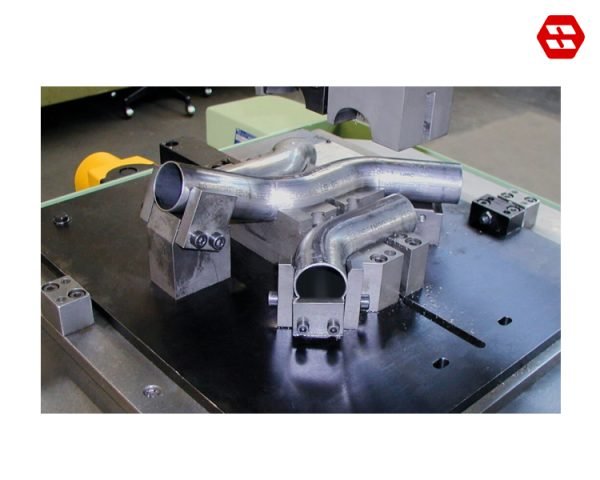

Individual Clamping Concepts via Standardised Mounts
Achieve tailored precision with our Circular Saw Machine Tube Cutting Saw PSU 450 GS by BEHRINGER, boasting individual clamping concepts via standardized mounts. This innovative feature ensures seamless and secure clamping of diverse tube shapes and sizes, optimizing cutting accuracy and efficiency.
Features of The Tube Cutting Saw PSU 450 GS
Reliable Workpiece Clamping.
The extremely robust clamping bridge and the integrated long-stroke cylinder with 160 mm clamping stroke ensure secure clamping of the workpieces to be machined.
Mounting for Part-Specific Fixtures.
The material table is flat. Part-specific fixtures can be installed and exchanged quickly and easily on this table.
Two-Hand Operation.
The standard two-hand operation allows comfortable and safe working without disturbing mechanical guards.
Robust and Durable.
The heart of the PSU saw units is a worm gear unit with EISELE shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations.
Sturdy Machine Base.
The heavy machine stand and the vibration-damping cast iron components made by BEHRINGER ensure a low-vibration sawing process and thus an increase in tool life.
Optimum Chip Flow.
Also when sawing tubes and hollow profiles due to the saw feed from bottom up.
Micro Spray System.
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle.
Adjustable Saw Entry and Exit Point.
The entry and exit point of the tube cutting saw to the material can be freely adjusted for the use of various fixtures.
Technical Data Tube Cutting Saw PSU 450 GS
| Cutting Range | |
| Cutting range round | 150 mm |
| Cutting range square | 140 x 140 mm |
| Cutting range flat | 400 x 30 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 10 mm |
| Performance Characteristics | |
| Drive power | 3.0 / 3.6 kW |
| RPM standard | 6 / 12 / 24 / 48 min-1 |
| RPM optional | 12 / 24 / 48 / 96 min-1 |
| Saw blade diameter | 450 mm |
| Saw feed | hydraulic |
| Material clamping | hydraulic |
| Dimensions and Weight | |
| Length | 1,600 mm |
| Width | 1,025 mm |
| Height | 2,040 mm |
| Weight | 1,200 kg |
| Material support height | 1,000 mm |
