Description
Manual Bandsaw Machine SHARK 332 CCS MEP
SHARK 332-1 CCS, band sawing machine to cut metals mitering from -45° to +60°. In addition to the manual pull-down mode, it can also perform single cuts without operator.

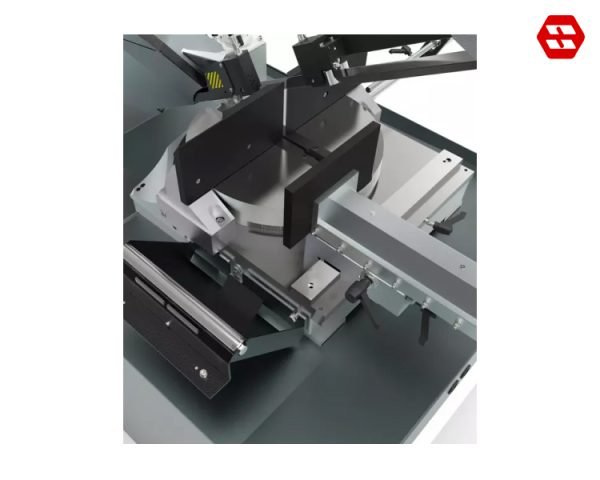

Cast-Iron Structure
Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.
Technical Data Manual Bandsaw Machine
SHARK 332-1 CCS MEP
CUTTING RANGE
 |  |  | |
| 0° | 300 mm | 250 mm | 330 x 250 mm |
| +45° | 260 mm | 250 mm | 260 x 200 mm |
| +60° | 180 mm | 170 mm | 170 x 170 mm |
| – 45° | 240 mm | 210 mm | 240 x 160 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 335 mm |
| Band size | 3650 x 27 x 0.9 mm |
| Blade motor power | 1.5 / 1.8 Kw – Three-phase |
| Blade rotation speed | 40 / 80 m/min – 2 Speeds |
