Description
SHARK 652 SXI H 5.0 AUTO
SHARK 652 SXI H 5.0 - AUTOMATIC MITERING, dual-column electrohydraulic semi-automatic band sawing machine to cut tubes, profiles and beams mitering from -60° to +60° - the saw head mitering is executed automatically.

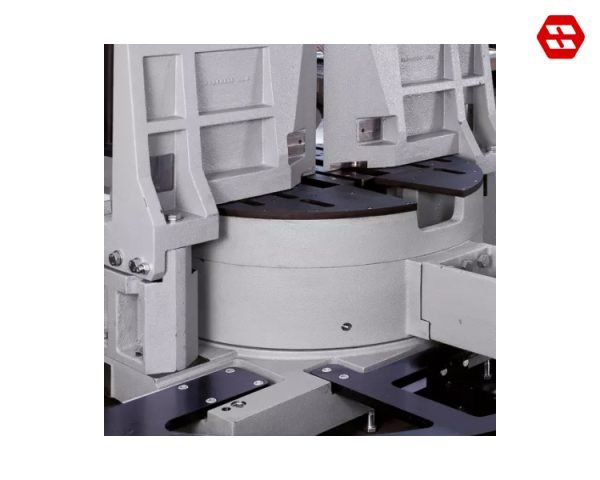

Cast-Iron Structure
cast-iron structure of the saw head, cutting table and vice to absorb vibrations during the cut and ensure longer blade life.

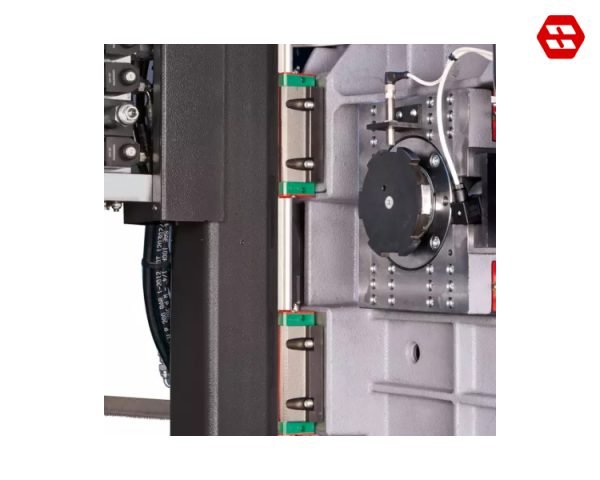

Motion of The Saw Head on Linear Guides With Preloaded Ball Screw Slides
Motion of the saw head on linear guides with preloaded ball screw slides, powered by two hydraulic cylinders: 3-degree canted saw head suitable to cut the horizontal sides of bars or bundles.

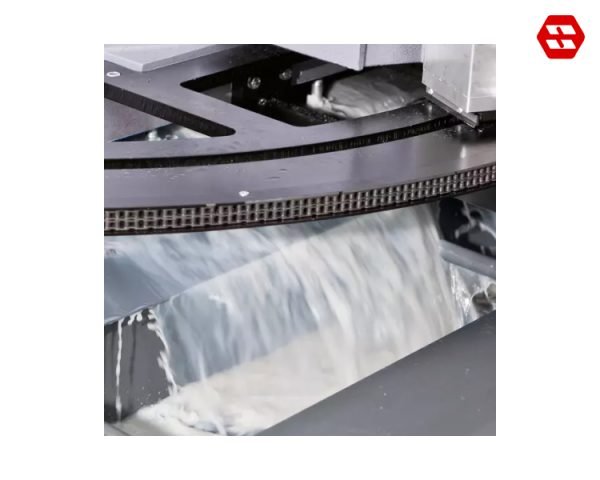

Design Allowing Complate Recovery of The Coolant
Base and turning table designed to allow both a better chip removal from the working table and complete recovery of the coolant.

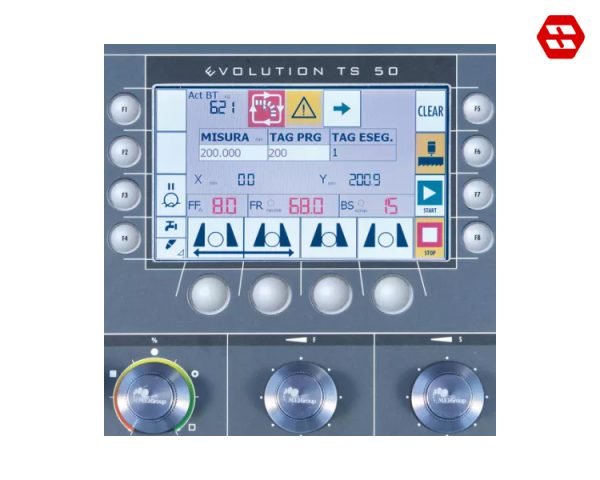

Saw Head Automatic Mitering
With the optional AUTOMATIC POSITIONING (cutting angle programming from control panel with hydraulic locking of the saw head), the cutting angle is reached by means of a rack and chain transmission.

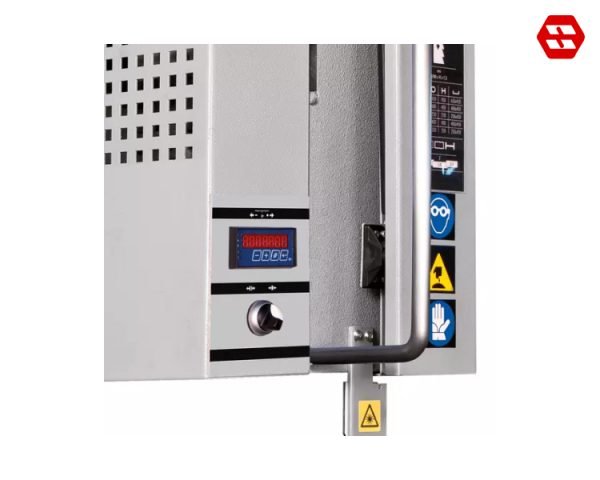

Saw Head Manual Mitering
Cutting angle is set by manual mitering of the saw head through a handle and servo control for hydraulic locking.
Technical Data Bandsaw Machine Semi Automatic
SHARK 652 SXI H 5.0 AUTO
MEP
CUTTING RANGE
 |  | | |
| 0° | 450 mm | 450 mm | 650 x 450 mm |
| +45° | 400 mm | 400 mm | 400 x 450 mm |
| +60° | 250 mm | 250 mm | 250 x 450 mm |
| – 45° | 400 mm | 400 mm | 400 x 450 mm |
| – 60° | 250 mm | 250 mm | 250 x 450 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 660 mm |
| Band size | 6700 x 41 x 1.3 mm |
| Blade motor power | 9.2 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 150 m/min |
