Semi Automatic Circular Saw Machine TIGER 372 SX EVO MEP

Merupakan mesin gergaji bundar semi-otomatis memberikan perpaduan efisiensi dan presisi untuk pemotongan logam. Didesain dengan kontrol yang mudah digunakan, alat berat ini memungkinkan pemosisian manual dikombinasikan dengan siklus pemotongan otomatis. Konstruksinya yang kokoh memastikan daya tahan, sementara fitur-fitur canggihnya meningkatkan akurasi pemotongan.

Description

TIGER 372 SX EVO

Is it possible to combine power and precision on any kind of material in a small semi-automatic circular sawing machine? The answer is yes!.TIGER 372 SX EVO, electropneumatic semi-automatic vertical sawing machine with HSS disc to cut metals mitering from -45° to +60°.

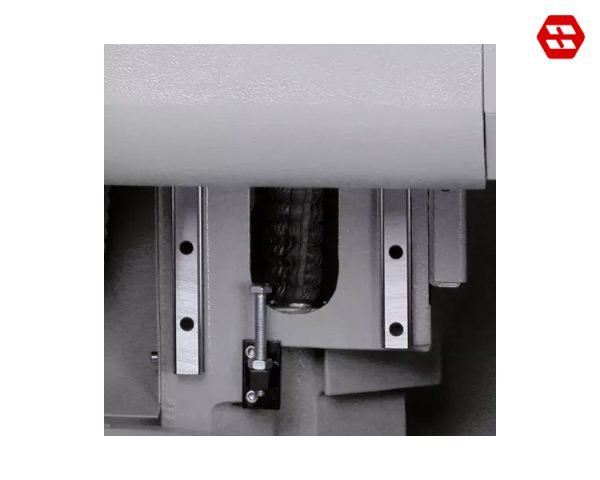

Saw Head Motion on Two Linear Guides

The motion of the saw head on double linear guide with preloaded ball screW slides drastically reduces vibrations during the cut.

Technical Data Semi Automatic Circular Saw Machine TIGER 372 SX EVO MEP

CUTTING RANGE

	Ø
0°	350	115 mm	95 mm	180 x 95 mm		90 mm	90 mm
+ 45°	350	110 mm	95 mm	125 x 95 mm		64 mm	64 mm	64 x 90 mm
+ 60°	350	90 mm	90 mm		90 x 90 mm	45 mm	45 mm	45 x 90 mm
– 45°	350	110 mm	95 mm	125 x 95 mm		64 mm	64 mm	64 x 90 mm
